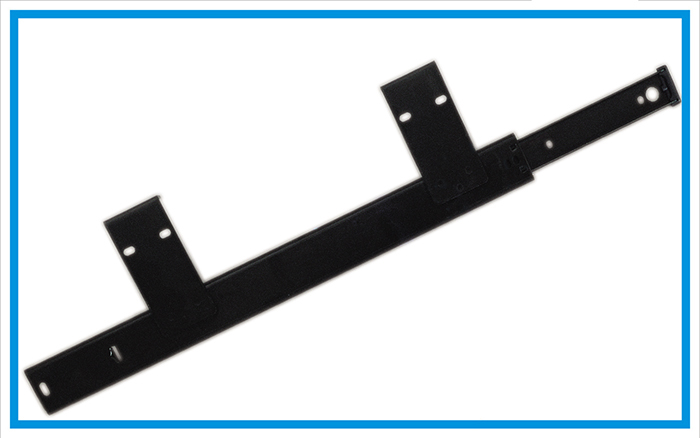

Under surface mounting keyboard slide-3545 & 3546
Application
- Computer keyboard trays, Pencil drawer.
- Center drawer, Pull out trays or Tabletops.
- Computer keyboard trays, Pencil drawer.
- Center drawer, Pull out trays or Tabletops.
Specifications
- Profile : Height - 101.6mm(4")
- Extension : 3/4 extension slide.
- Load rating: 50 LBS (23kgs)
- Size : 300mm - 600mm (12"~24")
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
- Material: Work hardened cold rolled steel
Features
- In-board(3546) and Out-board(3545) type selection,
Special height brackets available.
- Depress latch to free slide closing or disconnect.
- Positive out stop with latch.
- Safety- front edge protect user in operation.
