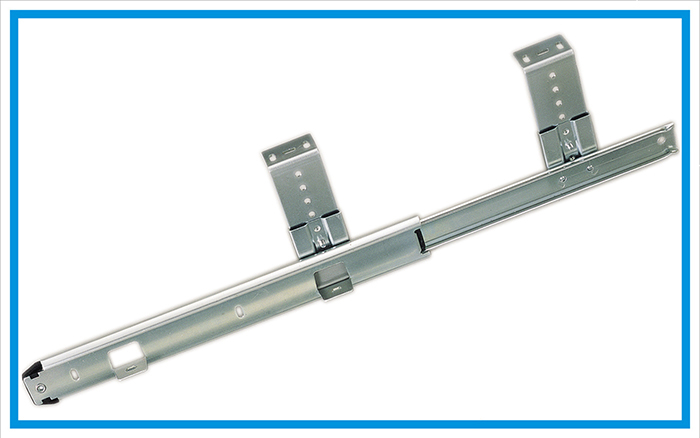

Under surface mounting keyboard slide-3566 & 3576

Application

  • Computer keyboard trays, Pencil drawer.
  • Center drawer, Pull out trays or Tabletops.

Specifications

  • Profile : Height - 62~108mm(2.45"~4.25")
  • Extension : 75%.
  • Load rating: 50 LBS (23kgs)
  • Size : 300mm - 600mm (12"~24")
  • Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
  • Material: Work hardened cold rolled steel

Features

  • Positive hold -out and hold-in detent.
  • Both in-board and out-board mounting brackets for selection.
  • With 5 stages height adjuistable
  • Shelf tabs design for easy drop-mounting.
  • Safety- front edge protect user in operation.

Product Categories

OEM/ODM drawer slide

Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
