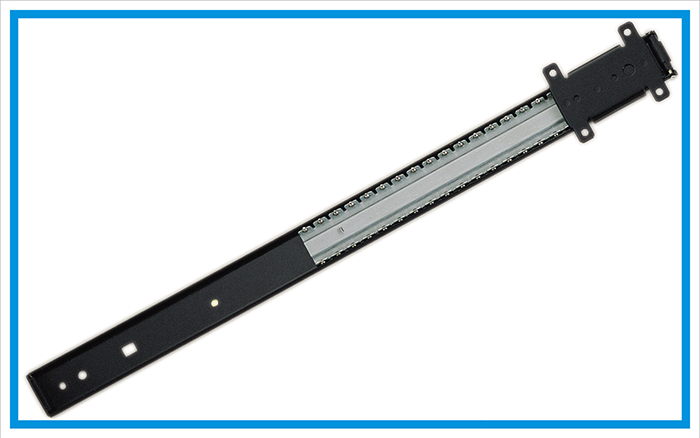

Pocket door slide-3571
Application
- Concealed door on Entertainment centers.
- TV. Cabinet wall units.
- Cabinets open plan office systems.
- Office storage system.
- Can be installed Horizontally or Vertically.
- Concealed door on Entertainment centers.
- TV. Cabinet wall units.
- Cabinets open plan office systems.
- Office storage system.
- Can be installed Horizontally or Vertically.
Specifications
- Load rating: 33 LBS (15kgs)
- Size : 300mm - 700mm (12"~28")
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
- Material: Work hardened cold rolled steel
Features
- Designed to match wooden follower strip, 1/2" to 5/8" thick.
- For european concealed hinges allows for tight door-to-cabinet tolerance.
- Recommended for 3/4" thick door, maximum door height in 36". Full-overlay hinge
- Pivot roller is recommended for vertical applications without partitions.
- 3rd slide is mountable for heavier door support, Detent - out.
