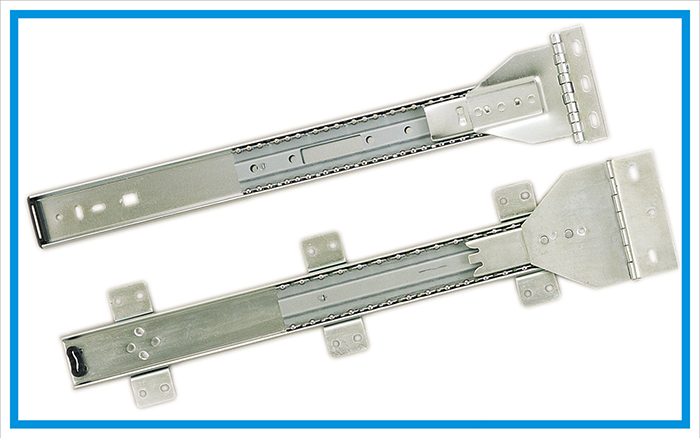

Over top flipper door slide-3577 & 3577W
Application
- Overhead filing systems and cabinets.
- Recessed doors.
- Overhead filing systems and cabinets.
- Recessed doors.
Specifications
- Number:
- 3577 Overtop flipper door slide with straight hinge.
- 3577W Overtop flipper door slide with straight hinge and wing-brackets.
- 3577-1 Overtop flipper door slide with offset hinge.
- 3577-1W Overtop flipper door slide with offset hinge and wing-brackets.
- Load rating: 33 LBS (15kgs)
- Size : 300mm - 700mm (12"~28")
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
- Material: Work hardened cold rolled steel
- 3577 Overtop flipper door slide with straight hinge.
- 3577W Overtop flipper door slide with straight hinge and wing-brackets.
- 3577-1 Overtop flipper door slide with offset hinge.
- 3577-1W Overtop flipper door slide with offset hinge and wing-brackets.
Features
- Built - in Straight hinge / Offset hinge for 3/4" thick doors.
- Wing - brackets on outer member for grooved thin door.
- Maximum door width is 48", recommended for wooden cabinets.
- A third slide should be used if door is wide or heavy.
- Non-handed.
