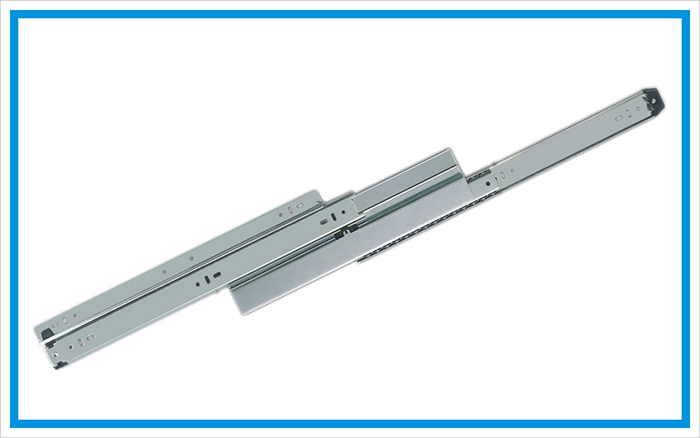

Heavy duty progressive drawer slide-3578
Application
- Lateral filing cabinets
- Credenzas filing cabinets
- File drawers in desks
- Store fixtures
- Hotel or institutional furniture and Kitchen cabinets.
- Lateral filing cabinets
- Credenzas filing cabinets
- File drawers in desks
- Store fixtures
- Hotel or institutional furniture and Kitchen cabinets.
Specifications
- Profile : Side space - 12.7mm(0.5") ; Height - 101.6mm(4")(including rail)
- Extension : Full extension slide,(Option : Overtravel 1" , 1.5")
- Load rating: 150 LBS (68kgs)
- Size : 300mm - 700mm
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
- Material: Work hardened cold rolled steel
Features
- Option: without rail mount/disconnect.
- Progressive action with closed position drawer detent-in.
- Full drawer travel with lift off disconnect utilizing mounting rail system.
Product Categories
OEM/ODM drawer slide
Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
