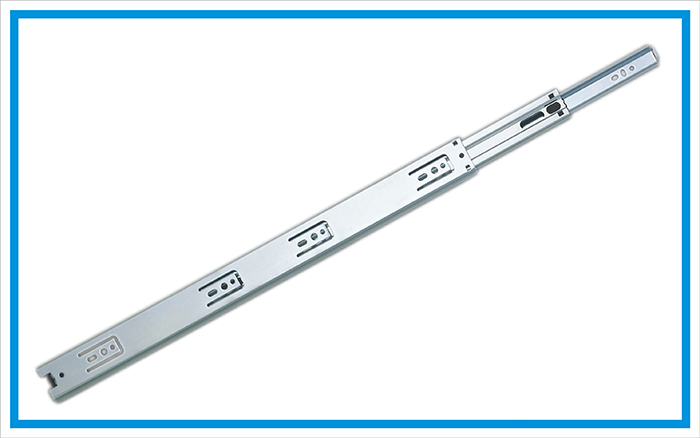

Light duty full extension drawer slide-3688
Application
- Light- duty commercial and residential desk
- credenza drawer
- Various institutional and contract applications
- Middle and top drawers of pedestals
- Wooden box drawer , Desk drawer.
- Economy class vertical file drawers
- Kitchen cabinets.
- Light- duty commercial and residential desk
- credenza drawer
- Various institutional and contract applications
- Middle and top drawers of pedestals
- Wooden box drawer , Desk drawer.
- Economy class vertical file drawers
- Kitchen cabinets.
Specifications
- Profile : Side space - 12.7mm(0.5") ; Height - 36mm(1.42")
- Extension : Full extension slide,(Option : Overtravel 1")
- Load rating: 50 LBS (23kgs)
- Size : 250mm - 700mm
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
- Material: Work hardened cold rolled steel
Features
- Side space adjustable tabs.
- With trigger release disconnect for easy drawer removal.
- Hold- in feature, Non-handed, silent movement.
- 32mm hole pattern with direct access mounting.
Product Categories
OEM/ODM drawer slide
Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
