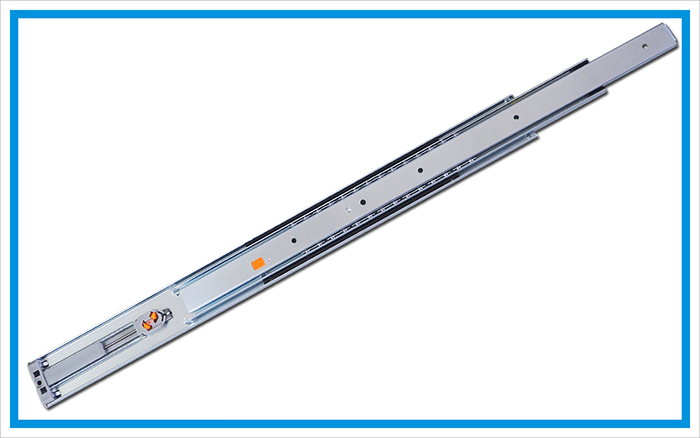

Medium duty drawer slide with soft-closing cylinder-4589D
Application
- Commercial and residential desk
- Credenza drawer
- Various institutional and contract applications.
- Electronic enclosure applications
- Commercial and residential desk
- Credenza drawer
- Various institutional and contract applications.
- Electronic enclosure applications
Specifications
- Profile : Side space - 12.7mm(0.5") ; Height - 45.6mm(1.80")
- Extension : Full extension slide,(Option : Overtravel 1")
- Load rating: 88 LBS (40KGS)based on testing 18" length.
- Size : 250mm - 700mm
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
- Material: Work hardened cold rolled steel
Features
- Side space adjustable tabs.
- With trigger release disconnect for easy drawer removal.
- Hold- in feature, silent movement.
- 32mm hole pattern with direct access mounting.
- 35mm stroke of soft-closing.
