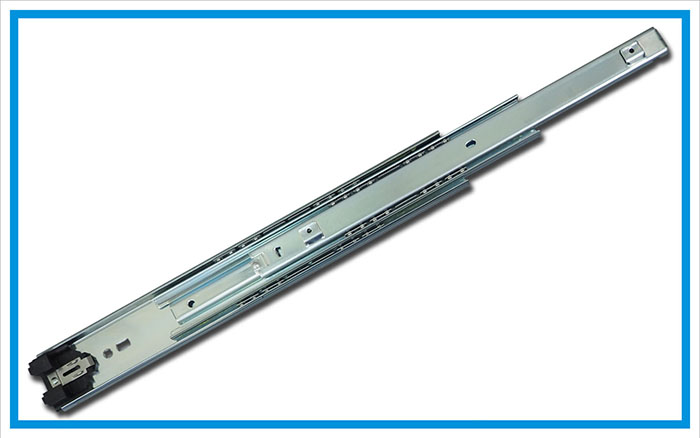

Heavy duty bayonet mounting drawer slide with interlock system-5784I

Application

  • Heavy-duty cabinets
  • Lateral files cabinets
  • Pedestal filescabinets
  • Wooden drawers and metal boxes (steel cases).

Specifications

  • Profile : Side space - 18mm(0.709") ; Height - 57mm(2.244")
  • Extension : Full extension slide,(Option : Overtravel 1")
  • Load rating: 200 LBS (91kgs)
  • Size : 300mm - 700mm
  • Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
  • Material: Work hardened cold rolled steel

Features

  • Action sequence in both directions by two stage detent function.
  • Bumpers ensure quiet movement by preventing metal contact.
  • Silent movement.
  • Interlock / Anti-tilt system.

Product Categories

OEM/ODM drawer slide

Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
