Heavy duty drawer slide

Application

  • Heavy lateral filing cabinets
  • Large storage drawers
  • Electronic racks
  • Full Extension and heavy-duty load capacity

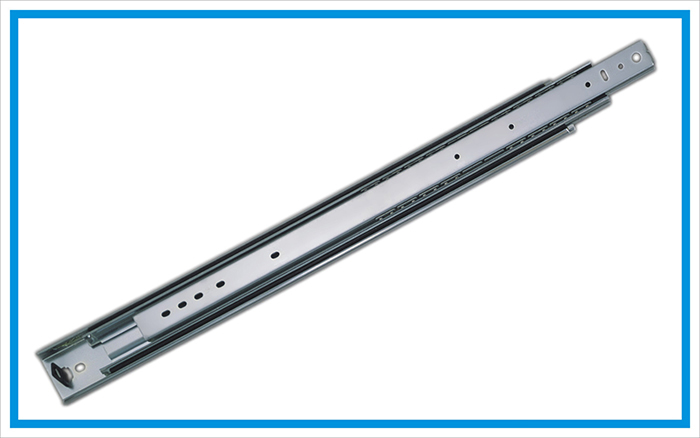

heavy duty drawer slide

Specifications

  • Profile : Side space - 19mm(0.75") ; Height - 58mm(2.28")
  • Extension : Full extension slide,(Option : Overtravel 1")
  • Load rating: 200 LBS (91kgs)
  • Size : 300mm - 700mm
  • Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
  • Material: Work hardened cold rolled steel

Features

  • Action sequence in both directions by two stage detent function.
  • Bumpers ensure quiet movement by preventing metal contact.
  • Hold- in feature, silent movement.
  • Standard hole pattern.
  • Lever disconnect.

Product Categories

OEM/ODM drawer slide

Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
