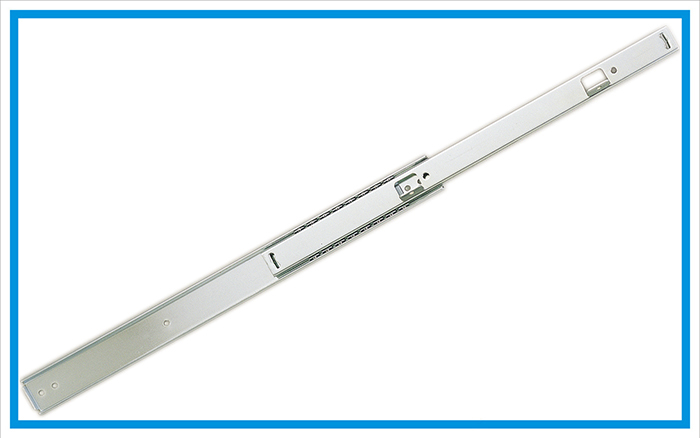

3/4 extension bottom mount slide-3574
Application
- Pull out tray , Cash box
- Pencil drawers , Shallow desk drawers.
- Economy class drawers
- Computer keyboard drawers.
- Pull out tray , Cash box
- Pencil drawers , Shallow desk drawers.
- Economy class drawers
- Computer keyboard drawers.
Specifications
- Profile : Side space - 9.5mm(0.37") ; Height - 35mm(1.38")
- Extension : 3/4 extension slide
- Load rating: 50 LBS (23kgs)
- Size : 300mm - 700mm
- Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
- Material: Work hardened cold rolled steel
Features
- Low profile , Simple installation.
- Simplified mounting tabs in drawer member.
- Non-handed, silent movement.
Product Categories
OEM/ODM drawer slide
Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
