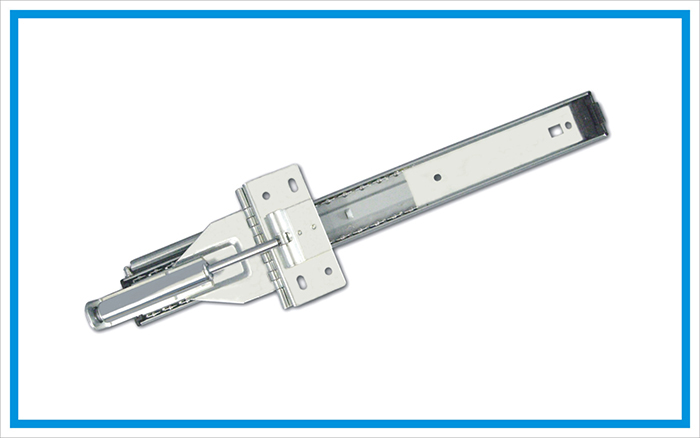

Over top flipper door slide with soft-down cylinder-3577D

Application

  • Overhead filing systems and cabinets.
  • Recessed doors.

Specifications

  • Load rating: 33 LBS (15kgs)
  • Size : 300mm - 700mm (12"~28")
  • Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
  • Material: Work hardened cold rolled steel

Features

  • Built - in Straight hinge / Offset hinge for 3/4" thick doors.
  • Wing - brackets on outer member for grooved thin door.
  • Maximum door width is 48", recommended for wooden cabinets.
  • A third slide should be used if door is wide or heavy.
  • Non-handed.
  • Soft-down cylinder
