Application

  • Bedroom and dining room case goods.
  • Kitchen and bath cabinets.
  • For limited space clearance applications.


Specifications

  • Profile : Side space-9.5mm(0.37") , Height-35mm(1.38")
  • Extension : 3/4 extension slide.
  • Load rating: 25 LBS (12kgs)
  • Size : 18" and customize size
  • Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
  • Material: Work hardened cold rolled steel

Features

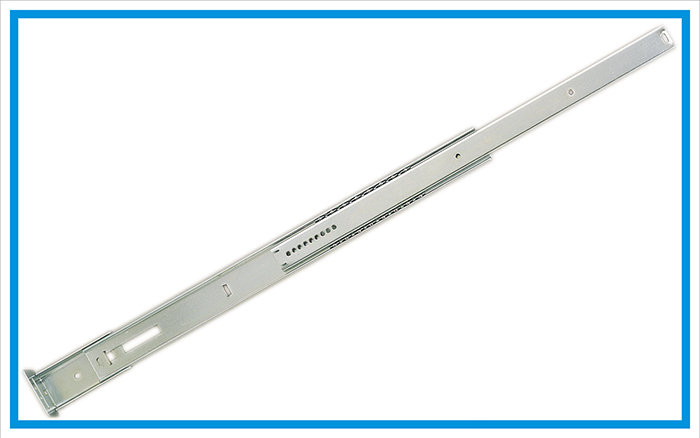

  • Mounts under drawer and onto cabinet frame. Friction disconnect.
  • Rear mounting bracket for length adjustment.
  • Single slide concealed under drawer.
  • Minimum side space requirements.
  • Option:
    • Without bracket
    • Without plastic tacks
    • Without rear mounting plate

OEM/ODM drawer slide

Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
