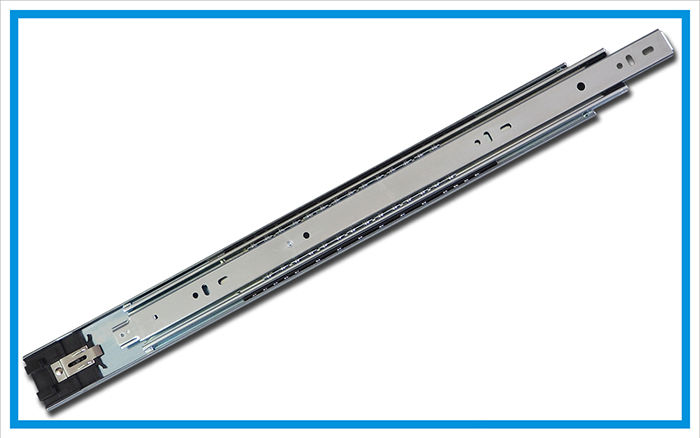

heavy duty drawer slide

Application

  • Heavy lateral filing cabinets
  • Large storage drawers
  • Pedestal files cabinets
  • Tool and equipment storage
  • Wooden drawers and metal boxes (steel cases)


Specifications

  • Profile : Side space - 12.7mm(0.5") ; Height - 50mm(1.96")
  • Extension : Full extension slide,(Option : Overtravel 1")
  • Load rating: 120 LBS (55kgs)
  • Size : 300mm - 700mm
  • Finish : Clear Zinc-plated(ZP), Black Zinc-plated(BZP), Black Electric Dipping (BED), Yellow Zinc-plated(YZP)
  • Material: Work hardened cold rolled steel

Features

  • Action sequence in both directions by two stage detent function.
  • Bumpers ensure quiet movement by preventing metal contact.
  • Silent movement.
  • 32mm hole pattern
  • Lever disconnect for easy drawer removal.

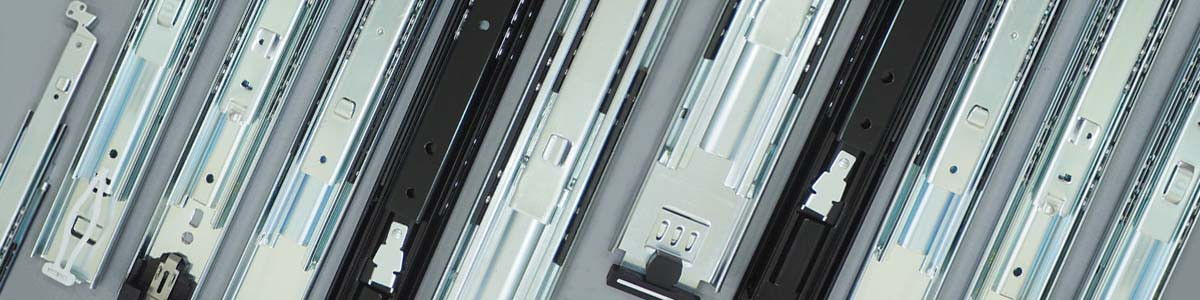

OEM/ODM drawer slide

Except for standard models, any special custom-design or modification are much welcome, our vision is to use our core competency to provide customers with engineeringsolutions for their various demand in a timely manner during the increasingly competitive market.
